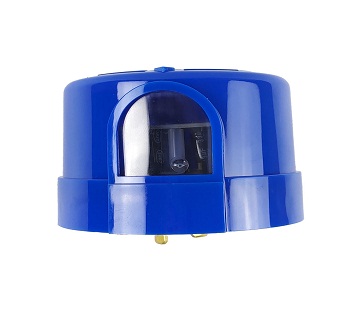

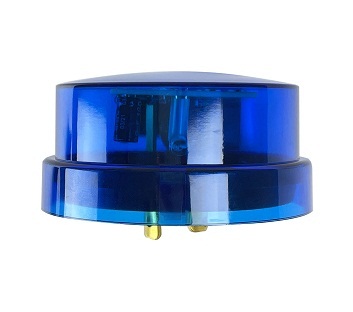

ZM-GK Series Photocontrol Receptacle


the photoconller can turn on and off light autormatically according to ambient
light ;our product ix widely used on street lighting.garden lighting.area lighting.
other outdoor lighting etc.

ZM-GK012

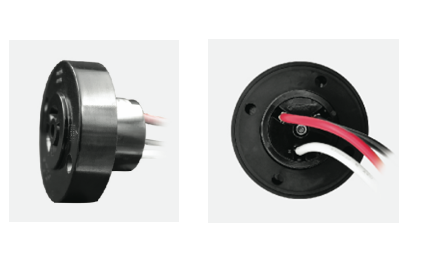

Photocontrol Receptacle (NEMA 3P)

NEMA lnterface


ZM-GK012A		ZM-GK012B







ZM-GK012C		ZM-GK012D








PRODUCT SUMMARY


All the ZM-GK012 series photocontrol receptacles were designed for the lanterns intended to accept a
twist-lock photocontrol for power management.

FEATURES


Bakelite boby for long-life service
Silicone gasket for better waterproof
















SPECIFICATIONS


Model no.		ZM-GK012A	ZM-GK012B		ZM-GK012C	ZM-GK012D
Applicable volt Range		0-480VAC
Rated Frequency		50/60HZ
Load Rating		15A
Ambient Temperature		-40
Related Humidity		96%
Accessory	Back/Front Cover	Optional
	Zinc Alloy lock nut

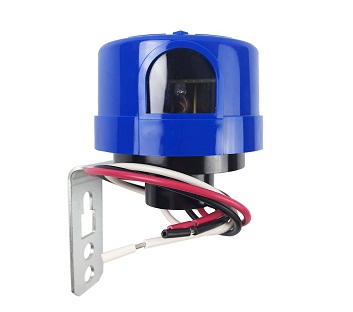

	Mounting bracket
Lead Length		6"min
On/Off Level		15Lux On,20Lux off			1-5Lux On,1-5Lux off
Lead		AWG12/14/16/18(non-ul)
Cable line(IP65)		Optional
Certifications		CE

INSTALLATION

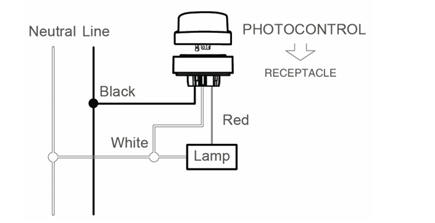

Disconnect power,wire the receptacle according to the diagram below













An arrow indicating NORTH on the top of the receptacle is used to assist correct direction.
Adjust the receptacle position if possible.when the fixture is installed in field.

ASSEMBLIES

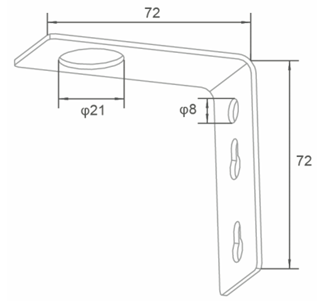

Long and short arm aluminum support				Equal arm aluminum support

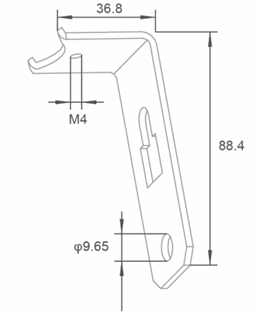

Equal arm iron srpport				Split iron bracket
